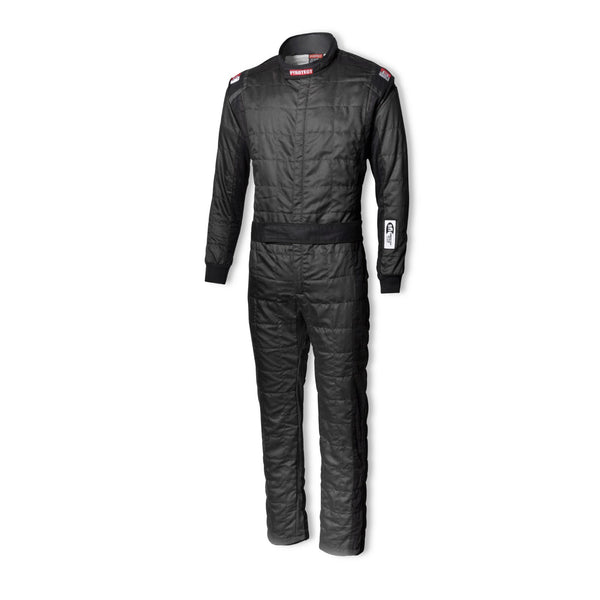

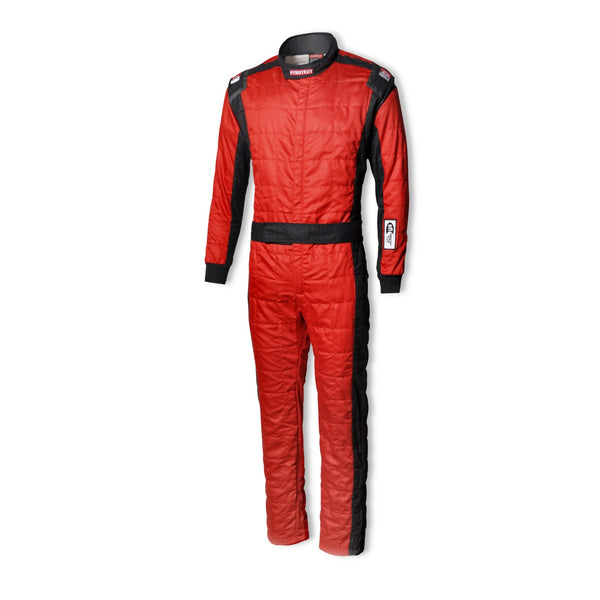

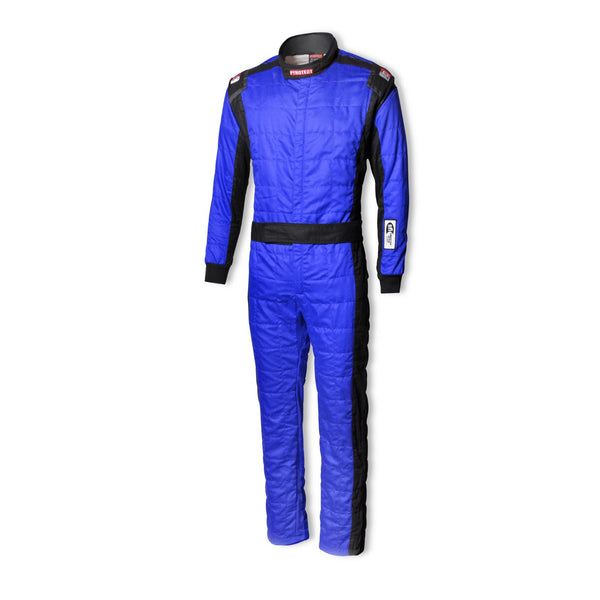

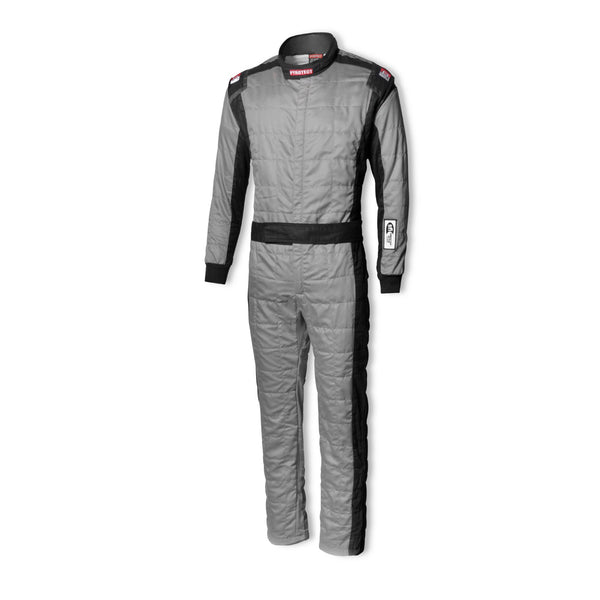

Pyrotect Sportsman Deluxe One Piece 2 Layer SFI 3.2A/5 Suit
Shipping calculated at checkout
Manufactured with Lightweight NOMEX material for comfort and improved heat dissipation, Stylish accent piping with 360 degree vented arm attachments for increased movement and a soft knit-lined collar. More features include a vented waist expansion panel for increased movement, better comfort and fit, and increased airflow to help keep you cooler in the heat. Hidden slash pockets for storing items while in the pits and hidden boot cuffs that allow material to layer over your shoe for added fire protection. The PYROTECT Sportsman Deluxe, SFI 3.2A/5, One Piece Drivers Suit is manufactured using NOMEX material with:
- Knit Lined Collar
- Vented Arm Attachment
- Epaulets
- 360° Vented Waist Expansion Panel
- Hidden Slash Pockets
- Hidden Boot Cuffs
- Arm Accent Piping
Understanding Fire Suit Ratings
The following is from the SFI Foundation. Please check with your sanctioning body to ensure compliance before buying any piece of safety equipment.
The driver suit spec 3.2A tests a garment’s fire retardant capabilities. The spec contains a rating system based on the garment’s capability to provide Thermal Protective Performance (TPP) in the presence of both direct flame and radiant heat. The purpose of the TPP is to measure the length of time the person wearing the garment can be exposed to a heat source before incurring a second degree, or skin blistering, burn.
The TPP rating is the product of exposure heat flux and exposure time. The TPP results can be converted to the time before a second degree burn occurs. The higher the garment rating, the more time before a second degree burn. Here are the SFI ratings with the corresponding TPP values and times to a second degree burn:
SFI Rating | TPP Value | Time to 2nd Degree Burn |
---|---|---|
3.2A/1 | 6 | 3 Seconds |
3.2A/3 | 14 | 7 Seconds |
3.2A/5 | 19 | 10 Seconds |
3.2A/10 | 38 | 19 Seconds |
3.2A/15 | 60 | 30 Seconds |
3.2A/20 | 80 | 40 Seconds |
Another test included in the spec is the after-flame test. When a direct flame is applied the fabric and them removed, the time it takes the material to self-extinguish is measured. This is called after-flame time and it must be 2.0 seconds or less for the layer of fabric to pass. Cuff material is also subjected to this test.
The flammability test evaluates single layers of fabric only. The individual layers of a multiple-layer suit are tested for after-flame time separately.
The TPP test can be used to evaluate multiple-layer configurations as well as single-layer fabrics. The samples used in testing are assembled with the identical fabrics and layer order as an actual driver suit.
Other tests required by Spec 3.2A include thread heat resistance, zipper heat resistance, and multiple layer thermal shrinkage resistance.
