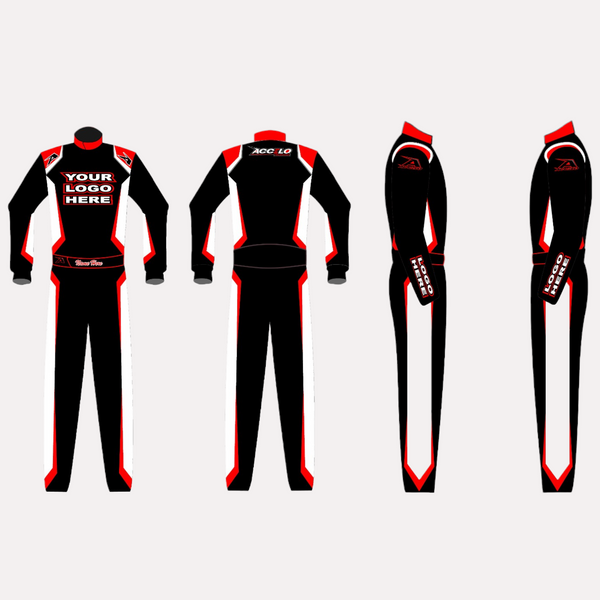

3 custom embroidered logos and a tailored fit at an unbeatable price. The Team is an SFI 3.2A/5 manufacturer certified, double layer nomex suit, with your specific color combinations and an aggressive, fast-looking design. It features 360 degree arm gussets, a low-back stretch panel and Nascar style boot cut leg openings and is available in a 1 or 2 piece design, with or without arm restraints, at no additional cost.
- SFI 3.2A/5 Certified
- Aggressive, Fast-Looking Design
- Embroidered Name and 3 Logos
- Tailor Fitting
- Double Layer Lightweight Nomex
- Black Moisture Wicking Interior Liner
- Box Quilting
- 360 Degree Radial Arms
- Boot Style Pant Cuffs
- Low-Back Stretch Panel
- Convenient Front Pockets
- European-Style Epaulettes
- Brass Zipper
- Optional Fluorescent Colors (+$70)
Refer to the "How to order" section below for more information on ordering your custom gear!
How to order custom items
- Add the item(s) to the cart and checkout. No need to select designs, colors, sizes at this step, we'll get all of that from you later.
- Once your order is processed you'll receive an email from us with instructions for completing the custom order.
- Provide your measurements, design choices, colors, vector logo files and options choices through the convenient online form included in the email. We'll provide you some additional information to help you make design choices and will be available to answer questions and guide you through the process.
- Review and approve your proofs. We'll work to turn around design proofs of your custom items as quickly as possible. 3 revisions are included with every order. In the rare case you want more, a $25 fee will apply to each additional.
- We start production of your items and you sit back and wait for your awesome designs to finish production and get shipped. Production and shipping times can vary. Allow 5-8 weeks in most cases.
Understanding Fire Suit Ratings
The following is from the SFI Foundation. Please check with your sanctioning body to ensure compliance before buying any piece of safety equipment.
The driver suit spec 3.2A tests a garment’s fire retardant capabilities. The spec contains a rating system based on the garment’s capability to provide Thermal Protective Performance (TPP) in the presence of both direct flame and radiant heat. The purpose of the TPP is to measure the length of time the person wearing the garment can be exposed to a heat source before incurring a second degree, or skin blistering, burn.
The TPP rating is the product of exposure heat flux and exposure time. The TPP results can be converted to the time before a second degree burn occurs. The higher the garment rating, the more time before a second degree burn. Here are the SFI ratings with the corresponding TPP values and times to a second degree burn:
| SFI Rating | TPP Value | Time to 2nd Degree Burn |
|---|---|---|
| 3.2A/1 | 6 | 3 Seconds |
| 3.2A/3 | 14 | 7 Seconds |
| 3.2A/5 | 19 | 10 Seconds |
| 3.2A/10 | 38 | 19 Seconds |
| 3.2A/15 | 60 | 30 Seconds |
| 3.2A/20 | 80 | 40 Seconds |
Another test included in the spec is the after-flame test. When a direct flame is applied the fabric and them removed, the time it takes the material to self-extinguish is measured. This is called after-flame time and it must be 2.0 seconds or less for the layer of fabric to pass. Cuff material is also subjected to this test.
The flammability test evaluates single layers of fabric only. The individual layers of a multiple-layer suit are tested for after-flame time separately.
The TPP test can be used to evaluate multiple-layer configurations as well as single-layer fabrics. The samples used in testing are assembled with the identical fabrics and layer order as an actual driver suit.
Other tests required by Spec 3.2A include thread heat resistance, zipper heat resistance, and multiple layer thermal shrinkage resistance.
